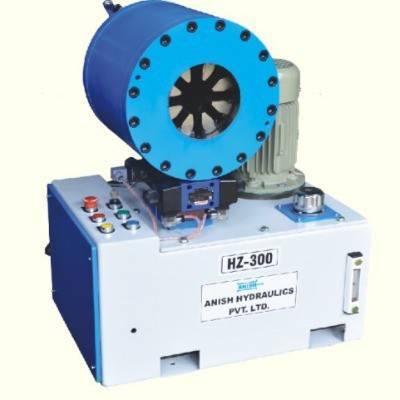

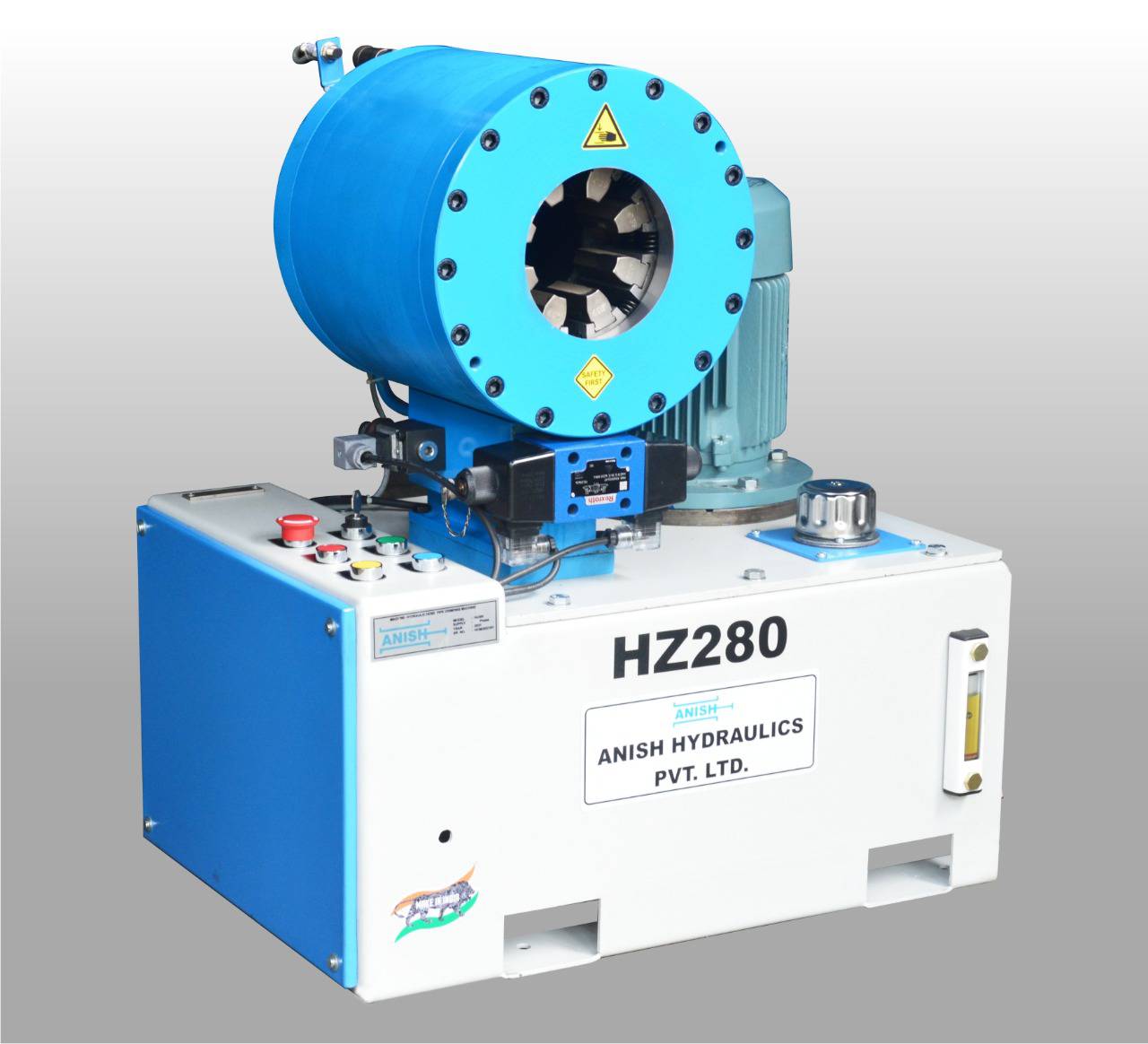

Hose Crimping Machine Horizontal

Crimping Range----------------------1/4" - 2" R2

---------------------Upto 1-1/4" Spiral

Crimping Force-----------------------250 Ton

3 Electric Motor Capacity---------2HP

4 No. of Die sets---------------------09 sets

5 No. of Segments------------------08 Nos.

6 Hose Feeding----------------------Front/Rear

7 Operating Voltage---------------AC-230V(1Ph) AC-415V(3Ph)

8 Controls Electro------------------Hydraulic

9 Cycle Time-------------------------16 sec.

10 Master Die Shoe Length----90mm

11 Overall Dimension(mm)-----600X760X925

12 Approximate weight ---------300Kg

13 Oil Specification----------------ISO VG68 Hydraulic Oil

14 Oil Tank capacity--------------40 L Hydraulic
